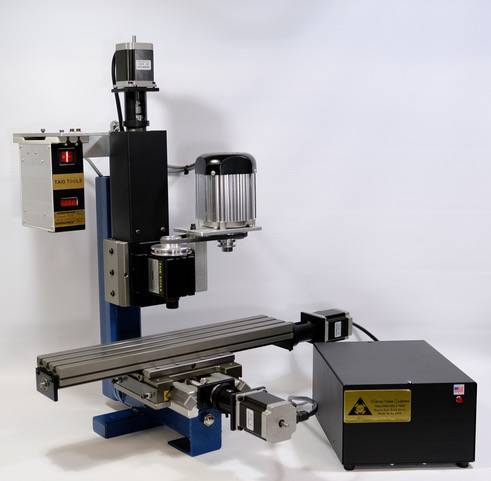

TAIG 5023DSLS CNC Micro Mill: Precision for Your Benchtop

The TAIG 5023DSLS CNC Micro Mill from TAIG Tools (Chandler, Arizona) is a full CNC desktop mill designed for precision machining.

It features ballscrews on X, Y and Z axes and DSLS (Digital Sync Lock Servo) control, making it suitable for small shops, prototyping, and knife makers who need to machine steel, aluminum, brass, wood, and plastic.

Specifications

Where it fits

The TAIG 5023DSLS CNC Micro Mill is an excellent choice for users requiring automated, precise machining of smaller parts. It excels in applications such as:

• Prototyping: Quickly create accurate prototypes from various materials.
• Small-batch production: Ideal for producing small runs of components where consistency is key.
• Knife making: Precisely machine handles, bolsters, and other knife components.
• Jewelry and clock making: Create intricate parts with high detail.
• Educational settings: Provides a robust platform for teaching CNC machining principles in schools and makerspaces.

However, this machine is not designed for large-scale industrial production or machining very large workpieces due to its benchtop size. Users needing to cut extremely hard materials or requiring very high material removal rates might find its stock motor limits a consideration. While powerful for its size, setting up CNC operations requires a learning curve, so new users should be prepared to invest time in understanding the control software and G-code.

How to choose

When selecting a micro mill, consider your specific needs regarding automation, precision, and the materials you plan to machine.

Do I need full CNC control or can I start with manual?

The 5023DSLS offers full CNC capabilities, providing automated, repeatable operations. If your work involves complex contours, repetitive tasks, or high precision, a full CNC machine like the 5023DSLS is beneficial. For simpler, one-off tasks or if you prefer direct manual control, a leadscrew micro mill like the TAIG 2023ER Micro Mill might be a more suitable starting point. TAIG also offers an upgrade path from manual to CNC-ready to full CNC, allowing you to expand capabilities as your needs evolve.

What level of precision do I require for my projects?

The 5023DSLS CNC Micro Mill utilizes ballscrews and DSLS (Digital Sync Lock Servo) control, which contribute to high precision and repeatability. Ballscrews minimize backlash, a common issue in leadscrew systems, leading to more accurate positioning. DSLS provides real-time feedback on axis position, ensuring the machine maintains accuracy even during operation. This makes it ideal for intricate work where tight tolerances are critical.

The use of closed-loop control systems is a recognized method for improving accuracy in machine tools NIST.

What materials will I be machining most often?

The 5023DSLS is capable of cutting a wide range of materials, including steel, aluminum, brass, wood, and plastic. Its robust construction, featuring oversized spindle ball bearings and heat-treated alloy-steel components, allows it to handle harder materials effectively for its size. If your primary work involves softer materials like wood or plastic, many micro mills can perform the task, but the 5023DSLS provides the rigidity and control for future expansion into metals.

What spindle options are important for my tooling?

The 5023DSLS comes with an ER16 spindle, which is a common and versatile collet system. ER collets offer good gripping power and concentricity for a wide range of tool shank diameters. For users who might need to use 5C collets, which are known for their high precision and holding power, especially for repetitive part clamping, TAIG offers a 5C headstock option as an accessory.

Frequently Asked Questions

What kind of materials can the 5023DSLS CNC Micro Mill cut?

The TAIG 5023DSLS CNC Micro Mill is designed to cut a variety of materials, including steel, aluminum, brass, wood, and plastic. Its robust construction with heat-treated alloy-steel components allows for effective machining across this range. This versatility makes it suitable for diverse projects from prototyping to crafting.

Is the 5023DSLS suitable for a home workshop or small business?

Yes, the 5023DSLS is well-suited for both home workshops and small businesses. Its compact desktop footprint makes it manageable in smaller spaces, while its full CNC capabilities and precision make it a valuable asset for professional prototyping and small-batch production. Many hobby machinists and small shops find it ideal.

What is the advantage of DSLS closed-loop control?

DSLS (Digital Sync Lock Servo) closed-loop control provides real-time feedback on the position of the machine's axes. This ensures high accuracy and repeatability by constantly monitoring and correcting any positional errors. It's a significant advantage for precision work, as it helps maintain consistent results even over long machining operations.

Can I upgrade a manual TAIG mill to a 5023DSLS CNC model?

TAIG Tools offers an upgrade path for their micro mills. While the 5023DSLS is a full CNC model, existing manual TAIG mill owners can explore options for CNC conversion kits or consider selling their manual machine and investing in a full CNC setup. This allows users to scale their capabilities as their needs evolve.

What kind of maintenance does the 5023DSLS require?

Like any precision machine tool, the 5023DSLS requires regular cleaning and lubrication to maintain its performance and longevity. Keeping the ballscrews and ways free of chips and debris is crucial. Refer to the machine's manual for specific lubrication points and recommended maintenance schedules to ensure optimal operation.

For more information or to purchase, visit the 5023DSLS CNC Micro Mill product page or explore other CNC Micro Mills on taigtools.com. You can also call TAIG Tools at (480) 895-6978.
