Choosing the right CNC milling technique improves your project’s efficiency, surface finish, and tool life. Climb milling and conventional milling are two of the most commonly used milling methods. The choice between them depends on several factors, including material type, machine capabilities, and desired surface finish.
This blog will guide you through the distinction between climb milling vs conventional milling and allow you to understand which methodology is best to use depending on your own CNC task.
What is Milling?
Milling is a manufacturing process in which a rotating cutting tool removes material from a stationary workpiece. CNC mills are computer-controlled and thus produce precision and accuracy. The job of cutting slots, drilling holes, shaping the edges, and so on can be accomplished through milling. Climb machining and conventional milling depend on the direction in which the cutter forces into the material.
Climb Milling and Conventional Milling Explained
Knowing the basics of climb and conventional milling helps you decide which technique suits your job best.
What Is Conventional Milling?
In conventional milling (also called up milling), the cutter rotates opposite to the feed direction. This implies that the cutting edge will begin with no thickness, and as it cuts into the material, it will gain it. This gives more control, and it is commonly used in manual machines where the backlash (the lost motion in mechanical systems) is a problem.
Conventional milling is perfect with aged machines, cast iron materials, or in case they require improved grip and control. It gives a rougher surface and is supposed to be safer with new pilots and manual arrangements.
What is Climb Milling?
Climb milling, also known as down milling, is when the cutter rotates with the direction of the feed. The cutting progresses in a manner whereby the chip thickness is maximized, and then it is reduced, a factor that aids in the minimization of friction and heat.
In contemporary CNC machines with low or zero backlash, climb machining is usually applied. It works well on soft materials like aluminium and plastic while using less energy and preserving tools.

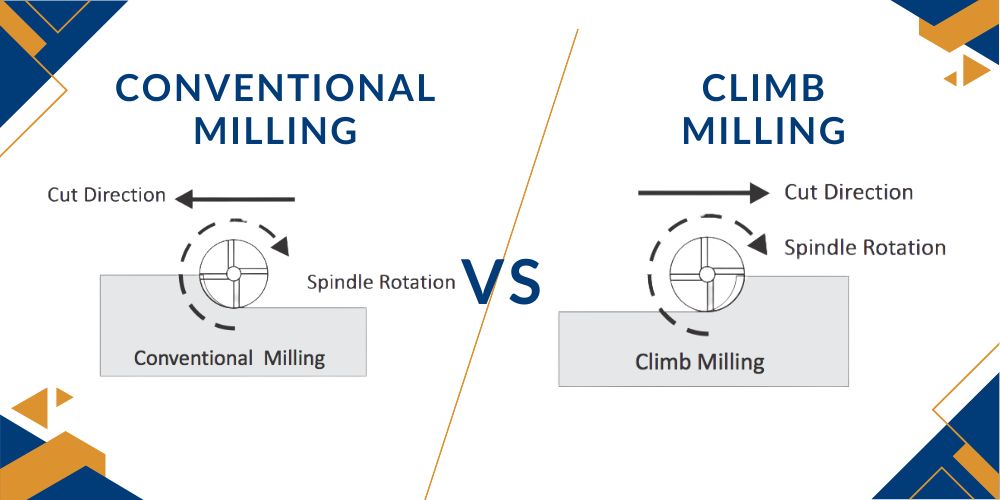

Climb Milling vs Conventional Milling– What’s the Difference?
The main distinction to consider when choosing a method lies in the core differences between climb milling and conventional milling:
- Chip Load: During climb milling, the chip is thick and becomes thin; thus, it is easily ejected. In conventional milling, the chip starts thin and becomes thicker, which can lead to rubbing rather than clean cutting.
- Surface Finish: Climb milling typically provides a better surface finish due to cleaner shearing and reduced vibration.
- Tool Stress: Tools used in climb milling experience less wear due to reduced friction during cutting. Comparatively, heat generation is greater during conventional milling, and this may shorten the tool’s lifetime.
How Milling Direction Affects Cutting Performance
The direction of milling affects the formation of chips, the generation of heat, and the cutting forces significantly:
- In climb cutting, chips are efficiently removed from the cutting area, reducing heat build-up and improving dimensional accuracy.
- Conventional milling forces the material against the cutter, which causes an increased amount of friction and heat. This method is especially prone to work hardening, particularly in tough or heat-resistant metals.
- In climb machining, the workpiece is dragged into the cutter by the active forces, which can be a problem in a loose setup. In other circles, meanwhile, conventional milling forces it away, yielding greater stability on manual machines.
Tool Life and Surface Finish
Tool durability and surface finish quality differ significantly between climb and conventional milling:
- In climb milling, tool life is extended due to lower cutting forces and more effective chip removal, which improves cooling. This method produces smoother surfaces with minimal burr formation.
- Under conventional milling, the resulting friction leads to faster tool wear and usually rougher finishes, which need to be polished or even applied.
Machine Setup and Backlash Considerations
The design of a machine is another primary consideration in employing climb cutting or conventional milling:
- CNC machines with rigid and backlash-free designs are ideal for climb milling. Such machines take the pulling force of the cutter to a level that does not in any way reduce accuracy.
- Conventional milling is favorable with manual mills or those machines that have backlash problems. This setup presses the material against the cutter, preventing it from being pulled in unexpectedly.
Always consider the machine type and backlash when choosing between climb and conventional milling.
When to Use Each Method
The choice between climb milling and conventional milling does not have a one-size-fits-all answer. Below are all the scenarios in which each of the methods is effective:
- High-speed CNC, smooth surface finishes, and long tool life applications can be achieved with the use of climb milling.
- Conventional milling is better suited for older machines, harder materials like cast iron, or applications requiring greater control.
- Climb cutting works well for roughing. For finishing, either method can be used depending on machine rigidity and material type.
Tips for Better Results
In order to get the best possible results with either of these two techniques, pay attention to the following practical points:
- When fitting the method to the machine, never exceed the capacity of the machine if you want to avoid chatter or poor accuracy.
- Apply appropriate cutting speed and feed rates on the material to reduce heat and tool wear.
- For climb cutting, ensure your CNC machine is well-calibrated and has minimal backlash.
- Keep tools sharp to prevent surface tearing or burnishing.
- In case of doubt, do a test on a sample piece of both the climb vs conventional milling method to compare that.
Conclusion
The choice between climb milling vs conventional milling is dependent on the type of machine, material, and project requirements. Climb cutting offers a superior surface finish and longer tool life, while conventional milling provides greater control. This possesses the knowledge of using the right ones and at the right time, hence accuracy and effectiveness.
TAIG Tools provides high-quality CNC milling machines and accessories engineered for precision, rigidity, and smooth operation. The equipment supports both climb and conventional milling techniques, making it a reliable choice for machinists seeking consistent, accurate results.
